Dahlia Concealed Thermostatic Shower Valve & Slide Rail Kit
Original price was: £159.99.£96.99Current price is: £96.99.
- No Compromise on Quality
- Control the delivery date and try to deliver it in the fastest time
- Elevate Your Shopping Experience
- High quality products, hassle-free returns.

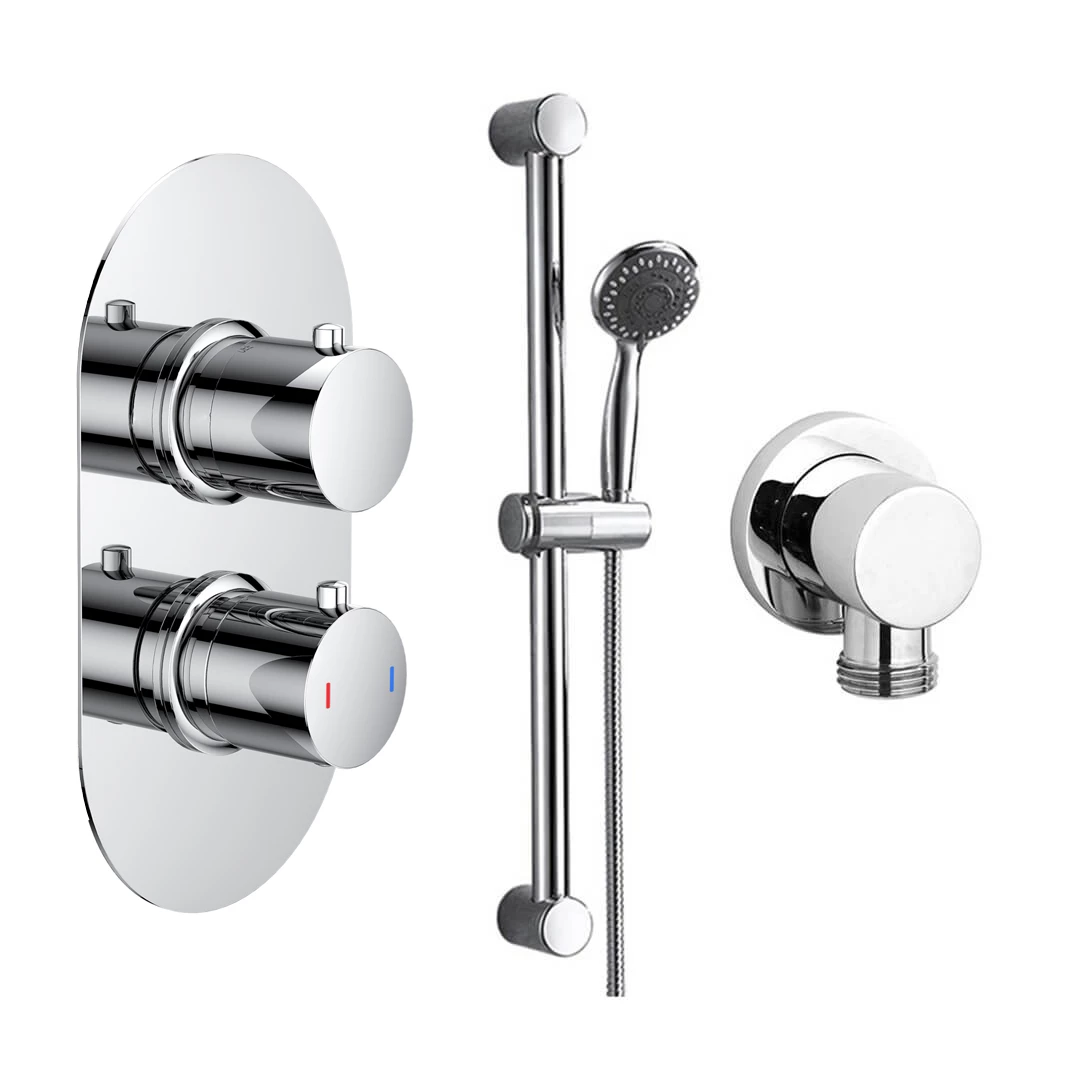

Make your bathroom more functional with the Dahlia Concealed Thermostatic Shower Valve & Slide Rail Kit. Slide rail kits are a great way to offer flexibility in your shower as you are able to quickly adjust the height of the handset, perfect for you and other members of your family.
The modern one outlet valve can be installed either vertically or horizontally and features a clever piece of technology in the Anti Calc Thermostatic Cartridge. It’s designed to fix common problems like temperature fluctuations and decreased water flow due to hidden blockages. To rid your valve of any blockages, simply press the safety button on the thermostatic handle, then change the temperature from hot to cold. This easy step will flush out any dirt, limescale, ordebris that might have built up over time, making sure your shower works smoothly.
Shower Valve Features:
- Modern 1 outlet concealed design with dual handle control
- Sleek Chrome finish
- Thermostatic valve with auto-shutoff mechanism protects you from sudden changes in temperature, helping prevent scalding
- Anti Calc thermostatic cartridge – advanced anti-debris technology that helps prevent blockage & limescale build-up for effortless temperature control
- Ceramic disc technology prevents any unwanted leaks or drips
- Dual handle control – top diverts the flow of water between outlets and the bottom controls the water temperature
- Interchangeable backplate design allows portrait or landscape orientation
- Crafted from brass (valve body), stainless steel (backplate) & zinc alloy (handles)
- Minimum water pressure required: 0.5 bar
- WRAS Approved
- Complies with BSEN 1111
- Covered by a 10 year manufacturer’s guarantee

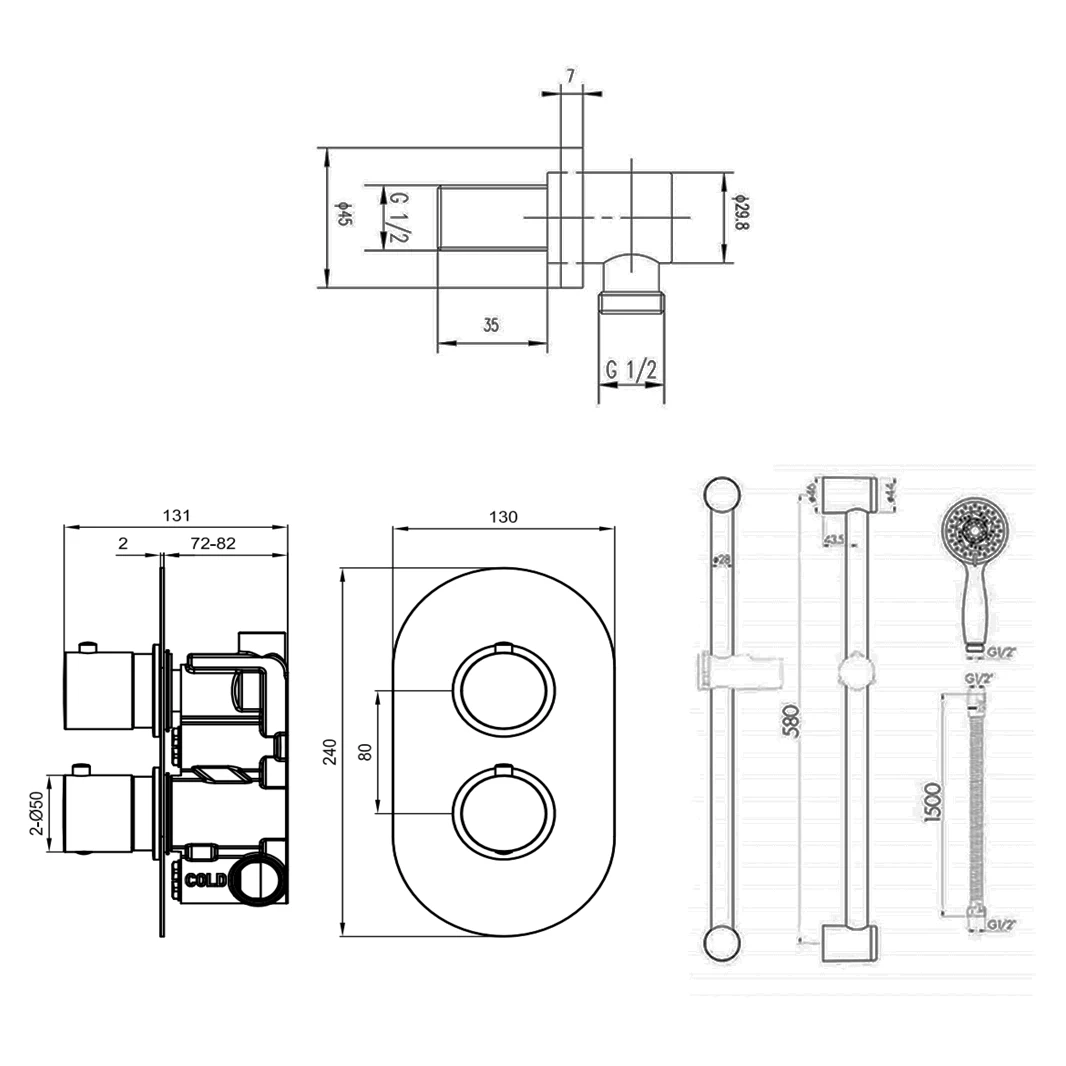

Dimensions:
- Height: 240mm
- Width: 130mm
- Depth: 131.5mm
Flow rates:
- 0.5 bar (l/min): 11.1 l/min
- 1.0 bar (l/min): 15.5 l/min
- 1.5 bar (l/min): 18.9 l/min
- 2.0 bar (l/min): 21.8 l/min
- 3.0 bar (l/min): 26.5 l/min
- 4.0 bar (l/min): 30.5 l/min
- 5.0 bar (l/min): 33.8 l/min
Shower Riser Rail Kit Features:
- Stainless steel and ABS plastic with a sparkling Chrome finish
- Multi-spray pattern shower handset with quick height adjustment
- Covered by a 10 year manufacturer’s guarantee
Dimensions:
- Height: 705mm
- Depth: 77.5mm
- Shower Hose Length: 1.5m
| Product Code | dr-dahlia-concealed-shower-kit |
|---|---|
| Style | Modern |
| Flow Rate at 5 Bar (l/min) | 33.8 |
| Flow Rate at 4 Bar (l/min) | 30.5 |
| Flow Rate at 3 Bar (l/min) | 26.5 |
| Flow Rate at 2 Bar (l/min) | 21.8 |
| Flow Rate at 1.5 Bar (l/min) | 18.9 |
| Flow Rate at 1 Bar (l/min) | 15.5 |
| Flow Rate at 0.5 Bar (l/min) | 11.1 |
| Height (mm) | 705 |
| Width (mm) | 117 |
| Orientation | Portrait, Landscape |
| Texture | Polished |
| Type | Concealed Shower Sets |
| Handle Type | Round, Dual Control |
| Shape | Round |
| Finish | Chrome |
| Mounting Type | Wall Mounted |
| Popular Features | Multifunction Water Flow |
| Temperature Control | Thermostatic |
| Number of Outlets | 1 Outlet |
| Material | Brass, Stainless Steel |
| GuaranteeMore information | Various |
| Brand Range | Drench Dahlia |
| Brand | Drench |
| Minimum Water PressureMore information | 0.5 |
