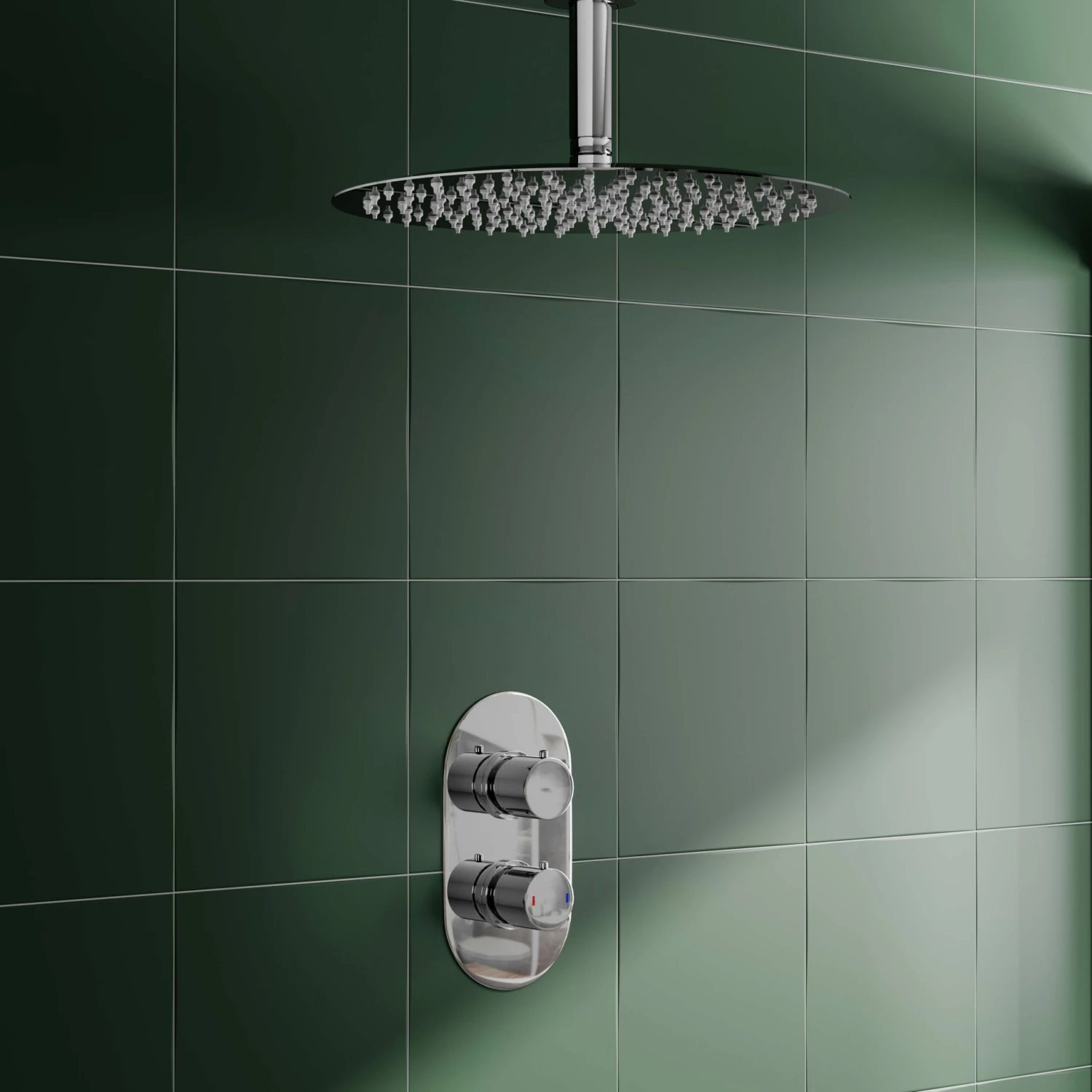

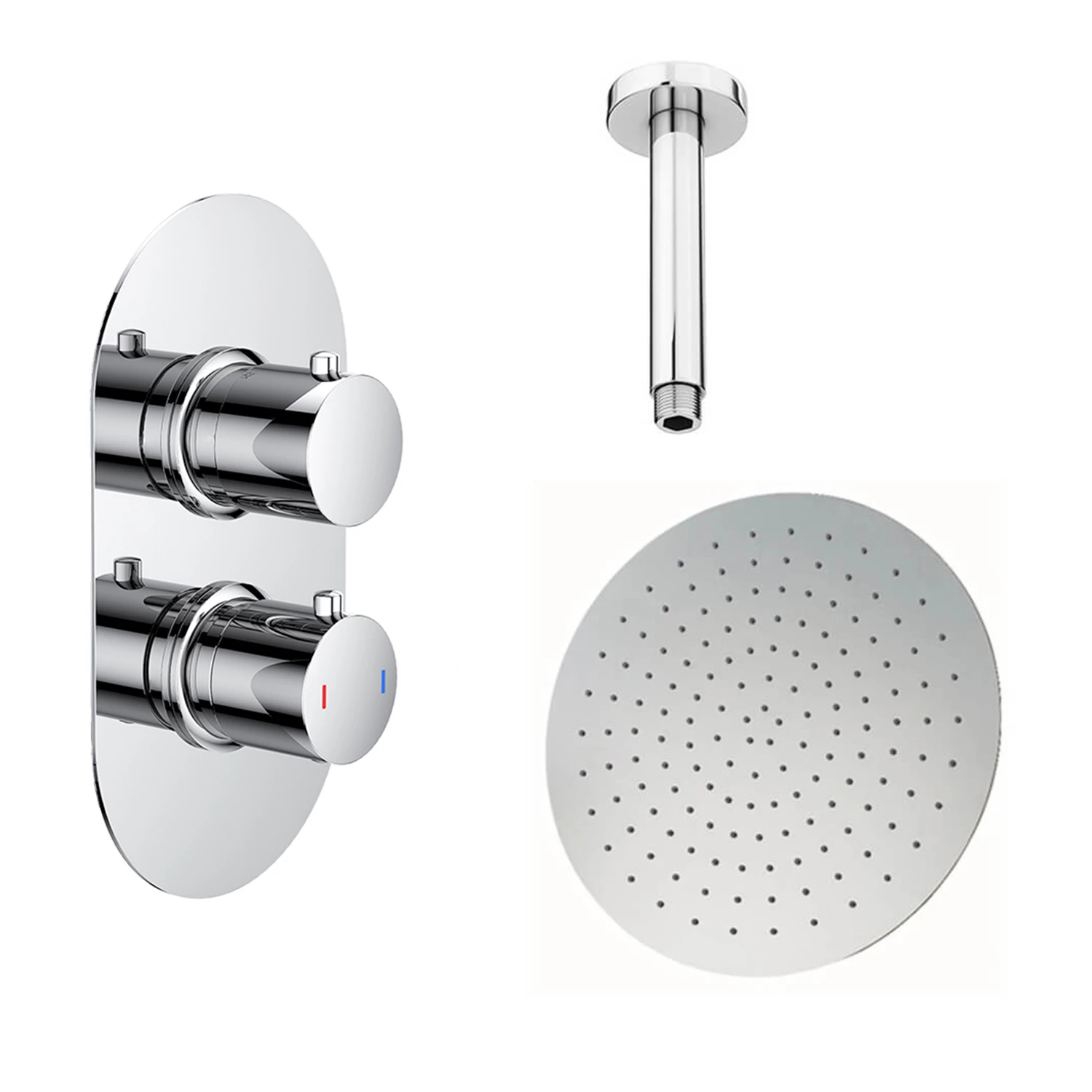

Brooke Concealed Shower Valve & Fixed Shower Head Package – 300mm Ceiling Shower Arm

Upgrade your bathroom or en suite with the sleek Drench Brooke Concealed Thermostatic Shower Valve and Ceiling Mounted Fixed Shower Head. The 400mm rainfall showerhead brings a luxurious feel to your space, and with the flexibility to choose from two ceiling arms and install your valve either vertically or horizontally, you can tailor your shower setup to suit you.

Inside the valve, you will find an Anti Calc Thermostatic Cartridge, specifically designed to tackle common issues like sudden changes in water temperature and reduced water flow caused by blockages. To make the most of this advanced technology, simply press the safety button on the thermostatic handle and then adjust the temperature from hot to cold. This process effectively clears out any accumulated dirt, limescale, or debris that may have built up over time, ensuring your shower functions smoothly.

Shower Valve Features:

• Modern 1 outlet concealed design with dual handle control
• Sleek Chrome finish
• Thermostatic valve with auto-shutoff mechanism protects you from sudden changes in temperature, helping prevent scalding
• Anti Calc thermostatic cartridge – advanced anti-debris technology that helps prevent blockage & limescale build-up for effortless temperature control
• Ceramic disc technology prevents any unwanted leaks or drips
• Dual handle control – top diverts the flow of water between outlets and the bottom controls the water temperature
• Interchangeable backplate design allows portrait or landscape orientation
• Crafted from brass (valve body), stainless steel (backplate) & zinc alloy (handles)
• Minimum water pressure required: 0.5 bar
• WRAS Approved
• Complies with BSEN 1111
• Covered by a 10 year manufacturer’s guarantee

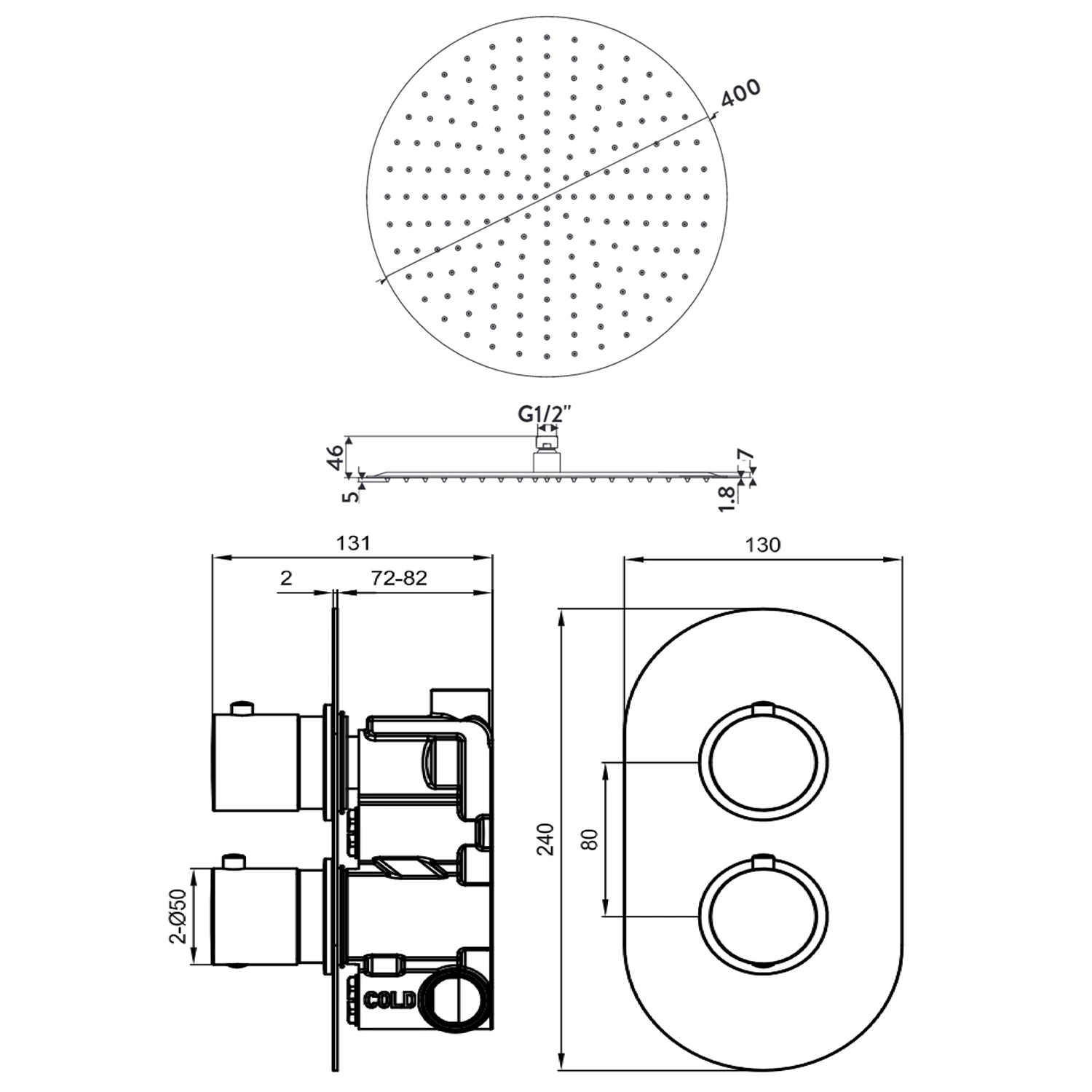

Dimensions:

• Height: 240mm
• Width: 130mm
• Depth: 131.5mm

Flow rates:

• 0.5 bar (l/min): 11.1 l/min
• 1.0 bar (l/min): 15.5 l/min
• 1.5 bar (l/min): 18.9 l/min
• 2.0 bar (l/min): 21.8 l/min
• 3.0 bar (l/min): 26.5 l/min
• 4.0 bar (l/min): 30.5 l/min
• 5.0 bar (l/min): 33.8 l/min

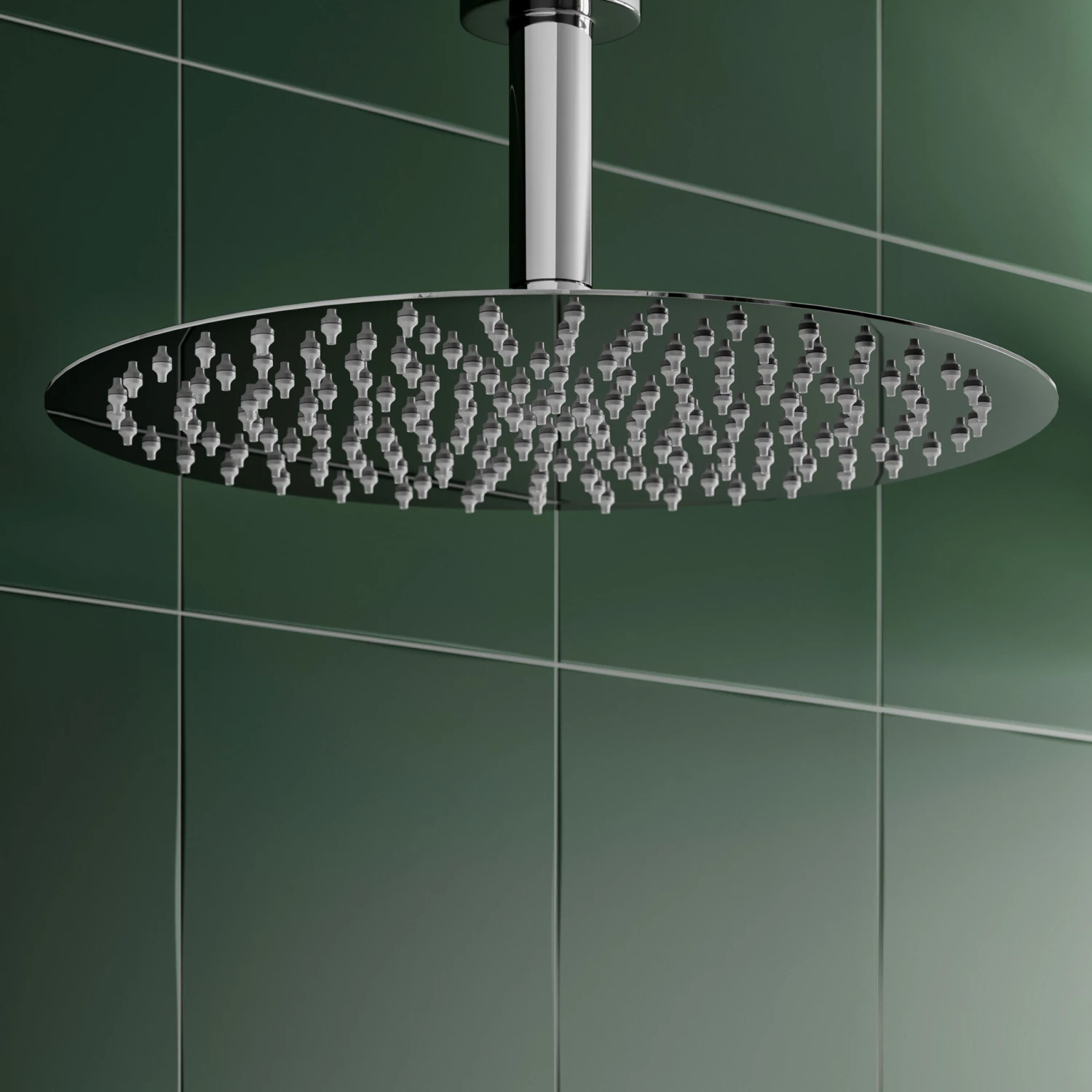

Shower Head Features:

• 400mm stainless steel shower head in a sleek Chrome finish
• Swivel joint easily adjusts the angle of the head
• Easy-clean rubber nozzles for easy cleaning
• Lifetime manufacturer’s guarantee

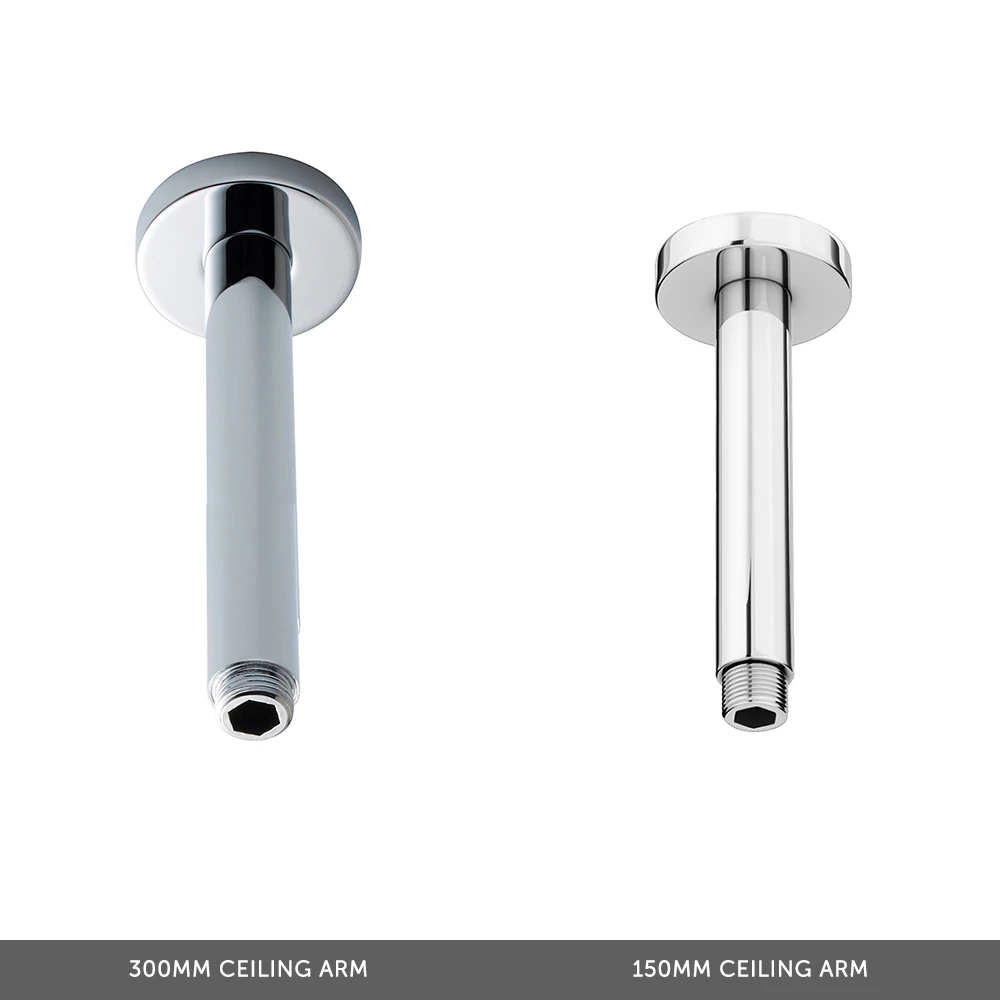

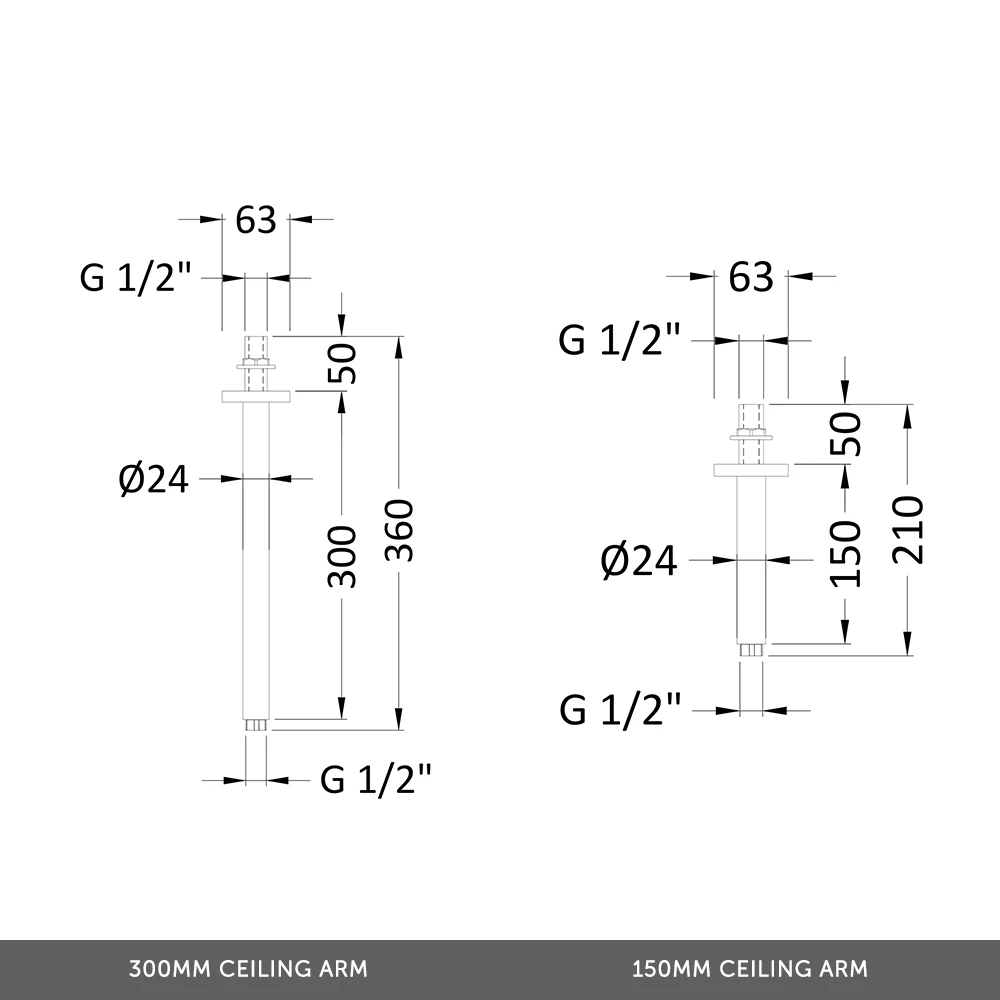

Ceiling Arm Features:

• Choose from 150 & 300mm ceiling arms
• Constructed from brass with a dazzling Chrome finish
• 5 year manufacturer’s guarantee
